A.P. LOCK
(Keyless Bushing)
A.P. Lock (Keyless Bushing) is a power transmission component that
enables to clamp shaft and hubs (i.e. pulley, gear etc.) simultaneously
through its surface pressure. S.I.M provides diverse options in regards
to size, body material and surface treatment.
SAPL-C Series
- Product Overview
-
Dimensions / Performance / CAD

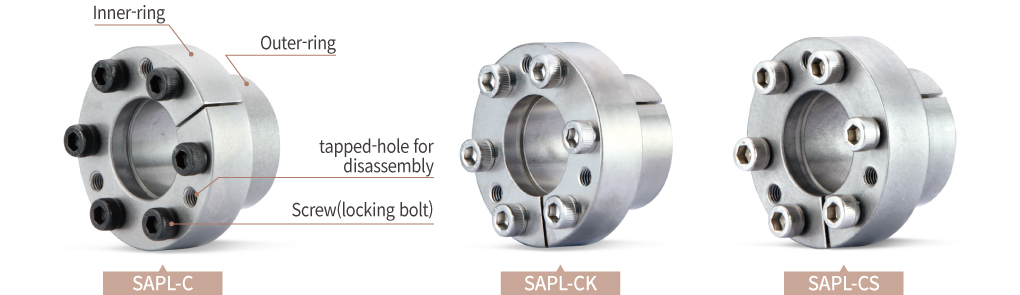

Structure and Material for SAPL-C Series
| Model | Body (Inner-ring / Outer-ring) | Screw (locking bolt) | ||
|---|---|---|---|---|
| Material | Surface Treatment | Material | Surface Treatment | |
| SAPL-C | STEEL | – | SCM435 | Black Oxide |
| SAPL-CK | STEEL | Electroless Nickel Plating | SCM435 | Electroless Nickel Plating |
| SAPL-CS | STS304 | – | STS304 | – |
Product Features
- Self-centering function (prevention of slight off-center matters)
- Designed to suit smaller and shorter hubs (as there is only small difference in dimension between inner(d) and outer(D) diameters, as well as its surface pressure is low) – The most compact-designed series
- No movement while installed as the inner-ring is directly attached to hub surface
- Diverse material & finish options available (e.g. stainless steel body for vacuum area, electroless nickel plating etc.)

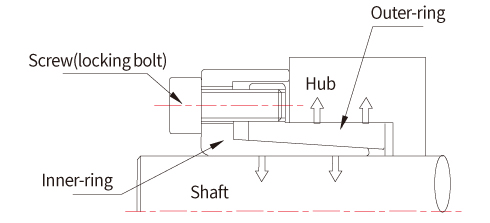

Principles
How to Order
