Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SCJ Series

Cross Joint Coupling

Structure & Material
Structure Material Surface Treatment
Hub High Strength Aluminum Alloy Anodizing
Center Block Stainless Steel –
Pin SUJ2 Electroless Nickel Plating
Bushing DU Bearing –
Screw SCM435 Black Oxide
Product Features & Application

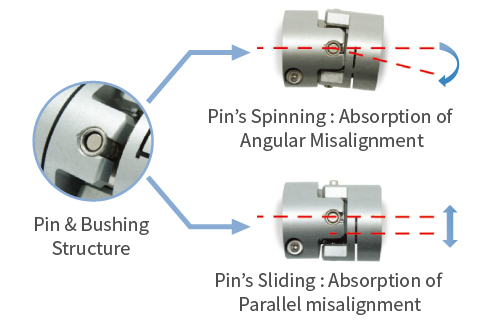

  • SCJ series is excellent for absorbing both angular/parallel misalignment through middle pin/bushing structure and minimizes reaction force on the shaft. (This coupling combines strong features of SOH series coupling and universal joint.)
  • This series structurally doesn’t absorb end-play.
High Torque (Durability) △
Torsional Stiffness ○
Vibration Absorption △
Misalignment Absorption ☆
Minimized Reaction Force ☆
Applicable Motors Servo ○
Stepping ○
Encoder ○
General –

Application : Cartesian Robot, UVW Stage, Machine tools, Index Table

Clamping Methods
Set-screw
(No mark)		 General ○
With Keyway ○
Side-clamp (C) General ○
Hub Split X
With Keyway ○
Taper-ring (T) X
How to Order
① Clamping Methods
No mark
Set-screw
C
General Side-clamp
② Center-Through
No mark
No Keyway
K(b size)
Keyway processed according to the indicated b size.
