Shaft Coupling
Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)
Varieties for Special Environments
SOHMP (PEEK) Series
SOH Series PEEK Spacer Released (Optimized for Vacuum applications)

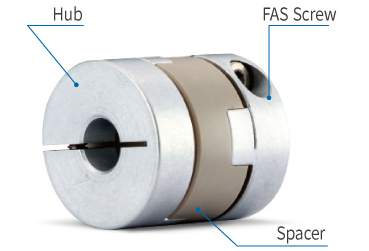

Structure & Material
| Structure | Material | Surface Treatment |
|---|---|---|
| Hub | High Strength Aluminum Alloy | – |
| Spacer | PEEK | – |
| Fastening Screw | STS304 | – |
Features of SOHMP Series
- Excellent for Vacuum applications in regards of extremely low level of outgas. (In terms of outgas, SOHMP functions better than SOHSV Series)
- Optimal option for heat/chemical resistance to be used in clean rooms and high-temperature applications.
- Please contact us for more specific details about each chemical resistances. It may be varied by conditions, however we can advise for general information.
SOHSV (VESPEL) Series
SOH Series VESPEL Spacer Released (Optimized for High-temp. applications)

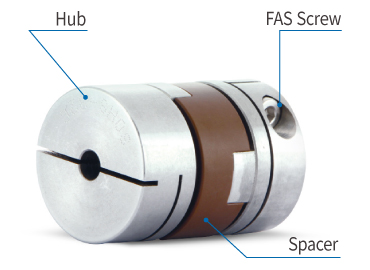

Structure & Material
| Structure | Material | Surface Treatment |
|---|---|---|
| Hub | Stainless Steel | Electro-polishing |
| Spacer | VESPEL (PI) | – |
| Fastening Screw | STS304 | – |
Features of SOHSV Series
- Excellent for high-temperature applications in regards of heat resistance.
- Outgas amount is relatively lower and it’s ideal to be used in clean rooms and vacuum applications.
- Please contact us for more specific details about each chemical resistances. It may be varied by conditions, however we can advise for general information.
SDSS/SDW□S & SRGS Series
All metal Stainless Steel Coupling (Optimized for High-temp. & Cleanroom application)
SDSS/SDW□S
SRGS
Structure & Material
| SDSS/SDW□S | SRGS | |
|---|---|---|
| OD(mm) | 16~94.5 | 16~32 |
| ID(mm) | 3~45 | 3~16 (Side-clamp: up to 14) |
| Rated Torque(N·m) | 0.5~150 | 0.3~2 |
| Clamping Methods | Side-clamp | Set-screw & Side-clamp |
Features
- Backlash free
- High Torsional Stiffness
- High Corrosion resistance
- High Anti-abrasion (less particle)
- High Heat resistance (better than AL-alloy)
- Optimized for vacuum applications
