Shaft Coupling
Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)
SFC Series
Urethane Flexible Coupling
Structure & Material
| Structure | Material | Surface Treatment |
|---|---|---|
| Hub | Steel | Nickel Plating |
| Middle Part | Poly Urethane | – |
| Screw | SCM435 | Black Oxide |
Product Features & Application
- SFC series is flexible with Urethane material and is especially excellent for absorbing misalignment to a greater extent.
- The middle Urethane structure absorbs external impacts and absorbs vibration.
| Vibration Absorption | ○ | |
|---|---|---|
| Misalignment Absorption | ○ | |
| Insulation of Electric Current | ○ | |
| Applicable Motors | Servo | – |
|---|---|---|
| Stepping | – | |
| Encoder | ○ | |
| General | ○ |
Clamping Methods
| Set-screw (No mark) |
General | ○ |
|---|---|---|
| With Keyway | X | |
| Side-clamp (C) | General | X |
| Hub Split | X | |
| With Keyway | X | |
| Taper-ring (T) | X | |

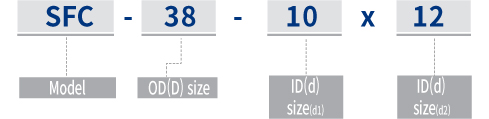

How to Order
