Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SRB Series Go to SRB Series(Index)

Radial Beam Coupling_Ultra High Strength Aluminum Alloy

Structure & Material

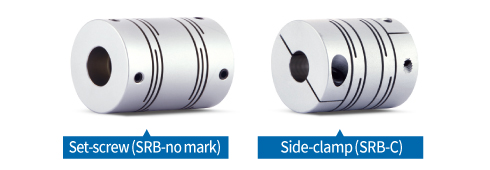

General

Structure Material Surface Treatment
Body AL-7075-T6 Anodizing
Screw SCM435 Black Oxide

※ There is no surface treatment for SRB-8 (Set-screw).

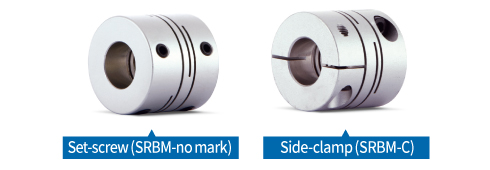

Space-saving

Structure Material Surface Treatment
Body AL-7075-T6 Anodizing
Screw SCM435 Black Oxide
Product Features & Application
  • SRB series is one-piece metal coupling with no backlash and absorbs misalignment through its slit structures.
  • SRB series is made of ultra high strength aluminum alloy material (AL-7075-T6) in order to enhance its durability.
SRB SRBM
Backlash free (Precision) ☆ ☆
High Torque (Durability) △ △
Torsional Stiffness ○ ○
Vibration Absorption – –
Misalignment Absorption ○ △
Applicable Motors Servo ○ ○
Stepping ○ ○
Encoder ○ ○
General – –

Application : UVW Stage, XY Stage, Part feeder, Encoder

INNER-RELIEF AREA

SRB series has the “relief” space structure in the middle area, in case there is interference that causes damages.
※ Exception Item: SRB-8

ROUND-SHAPED SLITS

SRB series has rounded slits(cuts) structure to disperse stress concentration.

Clamping Methods
Set-screw
(No mark)		 General ○
With Keyway ○
Side-clamp (C) General △
Hub Split X
With Keyway △
Taper-ring (T) X

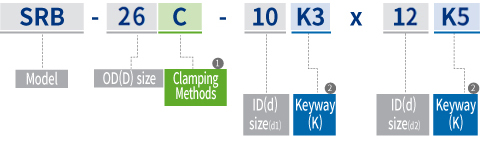

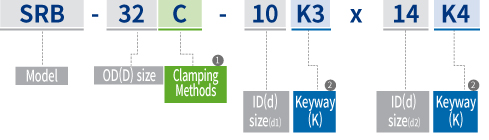

How to Order
① Clamping Methods
No mark
Set-screw
C
General Side-clamp
② Keyway
No mark
No Keyway
K(b size)
Keyway processed according to the indicated b size.
