Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SRB Series Go to SRB Series(Index)

Radial Beam Coupling_Stainless Steel Body

Structure & Material

General

Structure Material Surface Treatment
Body Stainless Steel –
Screw STS304 –

Space-saving

Structure Material Surface Treatment
Body Stainless Steel –
Screw STS304 –
Product Features & Application
  • SRB series is one-piece metal coupling with no backlash and absorbs misalignment through its slit structures.
  • SRBS series is made of stainless steel to enhance its corrosion resistance. (However, rust may still occur depending on usage and storage conditions.)
SRBS SRBMS
Backlash free (Precision) ☆ ☆
High Torque (Durability) △ △
Torsional Stiffness ○ ○
Vibration Absorption – –
Misalignment Absorption ○ △
Corrosion resistance ☆ ☆
Applicable Motors Servo ○ ○
Stepping ○ ○
Encoder ○ ○
General – –

Application : UVW Stage, XY Stage, Part feeder, Encoder and applications which requires corrosion resistant couplings.

INNER-RELIEF AREA

SRB series has the “relief” space structure in the middle area, in case there is interference that causes damages.

ROUND-SHAPED SLITS

SRB series has rounded slits(cuts) structure to disperse stress concentration.

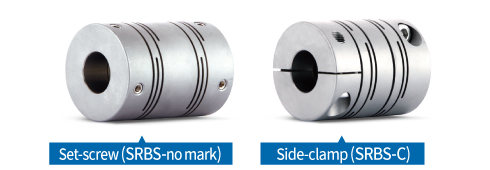

Clamping Methods
Set-screw
(No mark)		 General ○
With Keyway ○

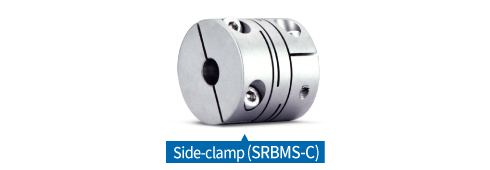

Side-clamp (C) General ○
Hub Split X
With Keyway ○
Taper-ring (T) X

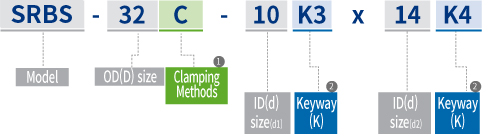

How to Order
① Clamping Methods
No mark
Set-screw
C
General Side-clamp
② Keyway
No mark
No Keyway
K(b size)
Keyway processed according to the indicated b size.
