Support Unit For Ball screw
Support unit for ball screw helps to support each shaft-ends of
ball screw. We, S.I.M provides diverse options according to sizes,
loads and purposes for our customers’ best convenience.
Support Unit for Ball Screw (Index)
Support Unit (General load)
Product Overview
※ Additional note for [FK-30]
In case of choosing “Install Method B”, size of spacer(collar) needs to be accordingly changed. Please contact Sung-il Customer Service team for more details.

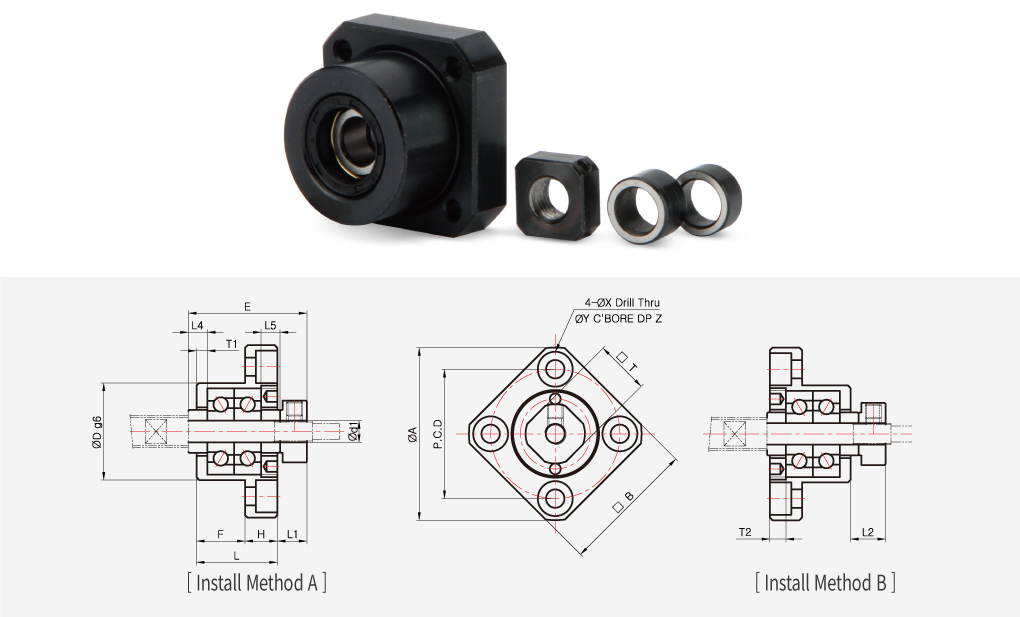

Dimensions
| Model | CAD | Size (mm) | Mass (g) |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body | Spacer(collar) | ||||||||||||||||||||
| d1 | L | H | F | E | D | A | P.C.D | □B | Install Method A | Install Method B | X | Y | Z | □T | L4 | L5 | |||||
| L1 | T1 | L2 | T2 | ||||||||||||||||||
| FK-4 P5/P0-C7 |  |
4 | 15 | 6 | 9 | 22 | 18 | 32 | 24 | 25 | 5.5 | 3/2 | 6.5 | 4/3 | 3.4 | 6 | 4 | 10 | 4.5/3.5 | 4.5/3.5 | 40 |
| FK-5 P5/P0-C7 | |
5 | 16.5 | 6 | 10.5 | 24 | 20 | 34 | 26 | 26 | 5.5/6.5 | 3.5 | 7/6 | 5/3 | 3.4 | 6/6.5 | 4 | 11 | 5.5/4.5 | 5.5/4.5 | 50 |
| FK-6 | |
6 | 20 | 7 | 13 | 29 | 22 | 36 | 28 | 28 | 5.5 | 3.5 | 8.5 | 4.5 | 3.4 | 6.5 | 4 | 12 | 7 | 5 | 65 |
| FK-8 | |
8 | 23 | 9 | 14 | 33.5 | 28 | 43 | 35 | 35 | 7 | 4 | 10 | 5 | 3.4 | 6.5 | 4 | 14 | 7.5 | 5.5 | 125 |
| FK-10 | |
10 | 27 | 10 | 17 | 29.5 | 34 | 52 | 42 | 42 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | 16 | 5.5 | 5.5 | 200 |
| FK-12 | |
12 | 27 | 10 | 17 | 29.5 | 36 | 54 | 44 | 44 | 7.5 | 5 | 8.5 | 6 | 4.5 | 8 | 4 | 19 | 5.5 | 5.5 | 225 |
| FK-15 | |
15 | 32 | 15 | 17 | 36 | 40 | 63 | 50 | 52 | 10 | 6 | 12 | 8 | 5.5 | 9.5 | 6 | 22 | 10 | 10 | 340 |
| FK-17 | |
17 | 45 | 22 | 23 | 46 | 50 | 77 | 62 | 61 | 10 | 9 | 13 | 12 | 6.6 | 11 | 10 | 24 | 9 | 9 | 770 |
| FK-20 | |
20 | 52 | 22 | 30 | 50 | 57 | 85 | 70 | 68 | 8 | 10 | 12 | 14 | 6.6 | 11 | 10 | 30 | 11 | 11 | 1065 |
| FK-25 | |
25 | 57 | 27 | 30 | 60 | 63 | 98 | 80 | 79 | 13 | 10 | 20 | 17 | 9 | 15 | 13 | 35 | 15 | 15 | 1465 |
| FK-30 | |
30 | 62 | 30 | 32 | 61 | 75 | 117 | 95 | 93 | 11 | 12 | 21 | 18 | 11 | 17.5 | 15 | 40 | 9 | 9 | 2300 |
※ Only FK-4 and FK-5 have different dimensions according to the bearing grade (P5/P0-C7).

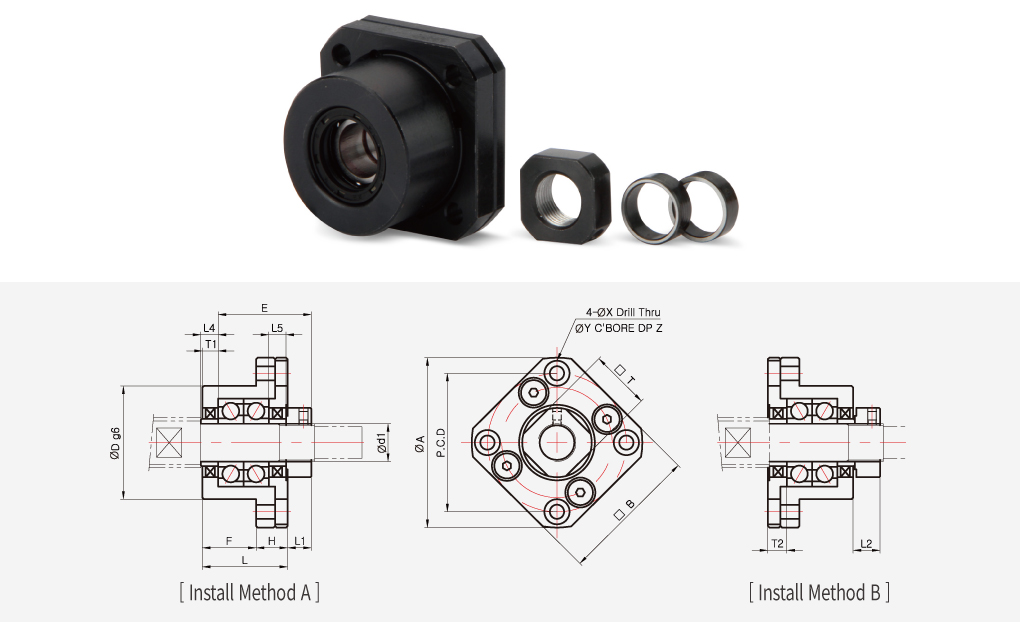

Dimensions
| Model | CAD | Sizes (mm) | Mass (g) |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body | Spacer(collar) | |||||||||||||||||||
| d1 | L | H | F | E | D1 | D2 | A | P.C.D | B | L1 | T1 | X | Y | Z | □T | L4 | L5 | |||
| FK-25D | |
25 | 42 | 15 | 27 | 52 | 80 | 80 | 122 | 100 | 92 | 12 | 10 | 11 | 18 | 11 | 35 | 10 | 10 | 2500 |
| FK-30D | |
30 | 45 | 15 | 30 | 59 | 96 | 90 | 138 | 116 | 106 | 14 | 11 | 11 | 18 | 11 | 40 | 11 | 11 | 3500 |
| FK-35 | |
35 | 48 | 16 | 32 | 67 | 112 | 100 | 154 | 132 | 120 | 14 | 12 | 11 | 17.5 | 11 | 50 | 12 | 12 | 4080 |
| FK-40 | |
40 | 61 | 18 | 43 | 76 | 126 | 120 | 176 | 150 | 128 | 18 | 16 | 14 | 20 | 13 | 50 | 15 | 15 | 6750 |
