Shaft Coupling
Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)
SCD Series Go to SCD Series(Index)
Concentricity Disk Type Coupling [SCDS]

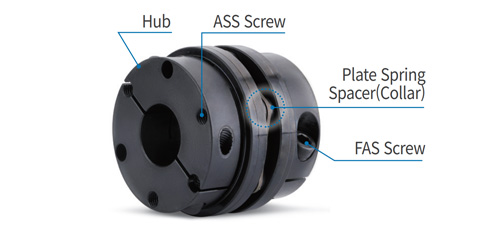

Structure & Material
| Structure | Material | Surface Treatment |
|---|---|---|
| Hub | Steel | Black Oxide |
| Plate Spring | Stainless Steel | – |
| Spacer(Collar) | Steel | Black Oxide |
| Assembly Screw | SCM435 | Black Oxide |
| Fastening Screw | SCM435 | Black Oxide |
Product Features & Application
| Backlash free (Precision) | ☆ |
|---|---|
| High Torque (Durability) | ☆ |
| Torsional Stiffness | ☆ |
| Vibration Absorption | – |
| Misalignment Absorption | △ |
Application : Machine tools, Chip mounters, Cartesian Robot, Solar energy equipment
Clamping Methods
| Set-screw (No mark) |
General | X |
|---|---|---|
| With Keyway | X | |
| Side-clamp (C) | General | ○ |
| Hub Split | X | |
| With Keyway | X | |
| Taper-ring (T) | X | |

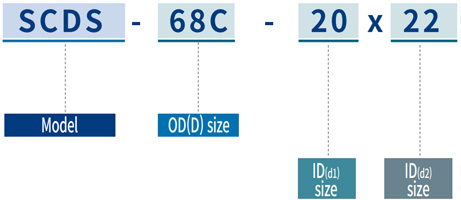

How to Order
※ To verify the precise appearance of the product, please refer to the standard product drawing files provided on the top of our website’s specification table or in the technical data section.
