Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SD Series Go to SD Series(Index)

Single Disk Type Coupling_Stainless Steel Body

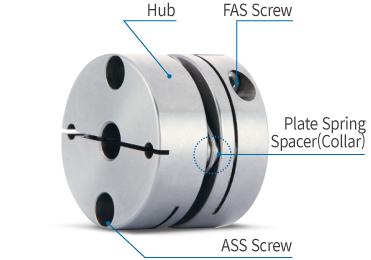

Structure & Material
Structure Material
Hub Stainless Steel
Plate Spring Stainless Steel
Spacer(Collar) Stainless Steel
Assembly Screw STS304
Fastening Screw STS304
Product Features & Application
Backlash free (Precision) ☆
High Torque (Durability) ○
Torsional Stiffness ☆
Vibration Absorption –
Misalignment Absorption △
Corrosion resistance ☆
Applicable Motors Servo ○
Stepping ○
Encoder ○
General –

Application : Semi-conductor manufacturing machine, SMT, Cartesian Robot, UVW Stage, Machine tools, Index Table, and Corrosion resistant / High-precision / High-heated environment

Why Stainless Steel Products are recommended?

1. Corrosion Resistance allows to be used in rusty environment.
2. The heat resistance is better than aluminum alloy material’s so that it keeps the mechanical properties of materials staying normal in high temperature applications.

Clamping Methods
Set-screw (No mark) General X
With Keyway X
Side-clamp (C) General ○
Hub Split △
With Keyway ○
Taper-ring (T) X
How to Order
① Clamping Methods
C
General Side-clamp
CW
Side-clamp Hub Split
② Side-clamp Hub Split
No mark
Not Split
W
Split
③ Keyway
No mark
No Keyway
K(b size)
Keyway processed according to the indicated b size.

※ To verify the precise appearance of the product, please refer to the standard product drawing files provided on the top of our website’s specification table or in the technical data section.

Side-clamp Hub Split(W) Option is available

※ From certain outer diameter(OD) sizes, we can provide Side-clamp Hub Split products. Please refer to “HOW TO ORDER” page for more details.
