Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SHD Series Go to SHD Series(Index)

Double Disk High Torque Disk Coupling

  • SHD – 2D (.dwg)
  • SHD – 3D (.step)

Side-clamp



Dimensions / Performance
Model CAD Size (±0.3mm) Screw Permissible
Torque
(N·m)		 Max.
rpm
(min-1)		 Moment
of
Inertia
(kg·m2)		 Static
Torsional
Stiffness
(N·m/rad)		 Mass
(g)		 Permissible Misalignment Side-
clamp
Hub
Split
(W)
D D1 D2 L L1 L3 F Size Fastening
Torque
(N·m)		 Angular
(˚)		 Parallel
(mm)		 End-
play
(mm)

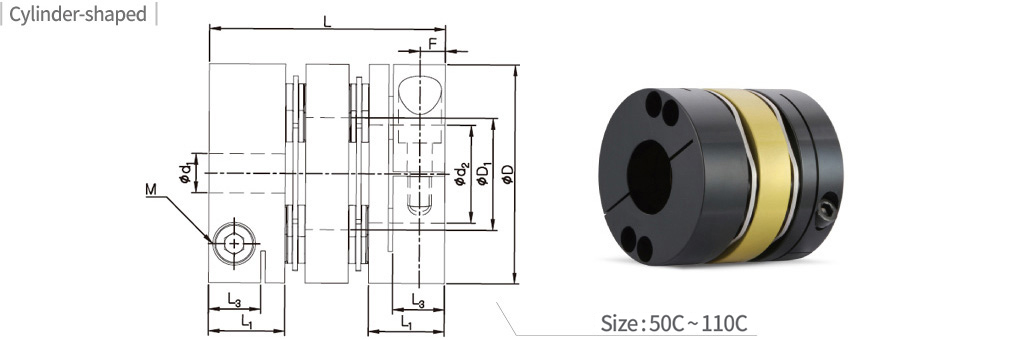

SHDW-50C 50 24 – 50.2 16.3 11 5.5 M5 8 25 7,500 8.0×10-5 8.5×103 220 1 0.2 ±0.6 ○
SHDW-56C 56 28.6 – 60.4 19.5 13.3 6.5 M6 13 35 7,000 5.8×10-5 1.0×104 300 1 0.2 ±0.6 ○
SHDW-66C 66 35.6 – 80 24.5 15.5 7.5 M6 13 60 6,500 1.4×10-4 1.5×104 520 1 0.2 ±0.6 ○
SHDW-78C 78 41 – 85 27 17 8.5 M8 30 120 6,000 7.9×10-4 2.5×104 834 1 0.2 ±0.6 ○
SHDW-88C 88 46 – 99.8 30 19 10 M8 30 180 5,500 14.1×10-4 3.5×104 1,170 1 0.2 ±0.6 ○
SHDW-110C 108 60.5 – 111 34.5 21 10.5 M10 50 280 4,000 37.6×10-4 7.0×104 1,980 1 0.25 ±1 ○

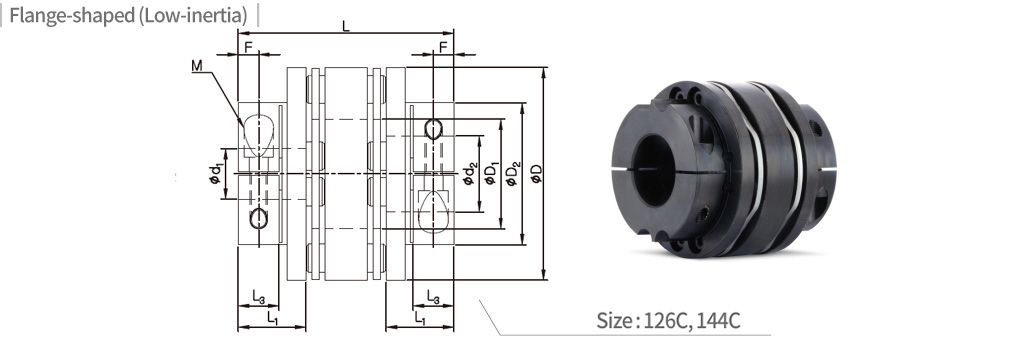

SHDW-126C 126 65 84/*100 127.4 40 24 12 M10 50 450 3,500 1.3×10-2 2.2×105 5,800 1 0.6 ±3.2 ○
SHDW-144C 144 75 98/*110 143.4 45 28 14 M12 90 600 3,000 25×10-2 3.9×105 8,600 1 1 ±3.6 ○
  • The Moment of Inertia and Mass values are based on products with max. Inner diameter.
  • Permissible Torque is the value regarding to a coupling’s self-durability and is not related to slip-torque between the coupling bore and the shaft.
  • For OD 126C & 144C products, please refer to D2 values with * mark when inner diameters are over 50mm.
Standard Inner Diameter (ID)
Model Standard Inner Diameter (d1, d2) (mm)
10 11 12 14 15 16 18 19 20 22 24 25 26 28 30 32 35 38 40 42 45 48 50 55 60 65 70
SHDW-50C ● ● ● ● ● ● ● ● ● ●
SHDW-56C ● ● ● ● ● ● ● ● ● ● ● ●
SHDW-66C ● ● ● ● ● ● ● ● ● ● ● ●
SHDW-78C ● ● ● ● ● ● ● ● ● ● ● ● ●
SHDW-88C ● ● ● ● ● ● ● ● ● ● ● ● ●
SHDW-110C ● ● ● ● ● ● ● ● ● ● ●★
SHDW-126C ● ● ● ● ● ● ● ● ● ● ●
SHDW-144C ● ● ● ● ● ● ● ● ● ● ●
  • The recommended shaft tolerance is h7.
  • Custom process (e.g. non-standard Inner diameter, special tolerance etc.) is also available upon a special request in prior to order placement.
  • Keyway is available. (Optional)
  • Due to interference of the middle parts, make sure the shaft is only inserted into L1 depth for IDs with ★ mark. Consult us first if you’re concerned about misalignment.
Slip Torque
  • The below table shows the actual permissible torque values when the slip torque value is lower than the coupling’s permissible torque value.
  • If the slip torque value is lower than the coupling’s permissible torque value, please check and compare between the slip torque in the below table and the operating torque value of the connected motor. It is safer to size up the coupling or use a key/keyway when the slip torque value is lower than the motor’s operating torque.
  • The below slip torque values may be subject to change according to different testing conditions. (e.g. shaft tolerance, surface roughness, or acceleration/deceleration of driving shafts). On the other hand, the values could be affected when a different kind of fastening screw is used (body material or surface treatment). Therefore, we recommend you test under the same conditions before mounting.
Model Permissible
Torque (N·m)		 Slip Torque (N·m) by Inner Diameter (d1,d2)
10 11 12 14 15 16 18 19 20 22 24 25 26 28 30 32 35 38 40 42 45 48 50 55 60
SHDW-50C 25
SHDW-56C 35 30 30
SHDW-66C 60 45 50
SHDW-78C 120
SHDW-88C 180
SHDW-110C 280 162 170 182 199 221 235 247 253 273
SHDW-126C 450 191 209 232 268 305 323 355 379 385 400 400
SHDW-144C 600
