Support Unit For Ball screw

Support unit for ball screw helps to support each shaft-ends of

ball screw. We, S.I.M provides diverse options according to sizes,

loads and purposes for our customers’ best convenience.

Support Unit for Ball Screw (Index)

Installation Guide Made-To-Order

Support Unit (Grease injection)

  • FK-G-2D (.dwg)
  • FK-G-3D (.step)

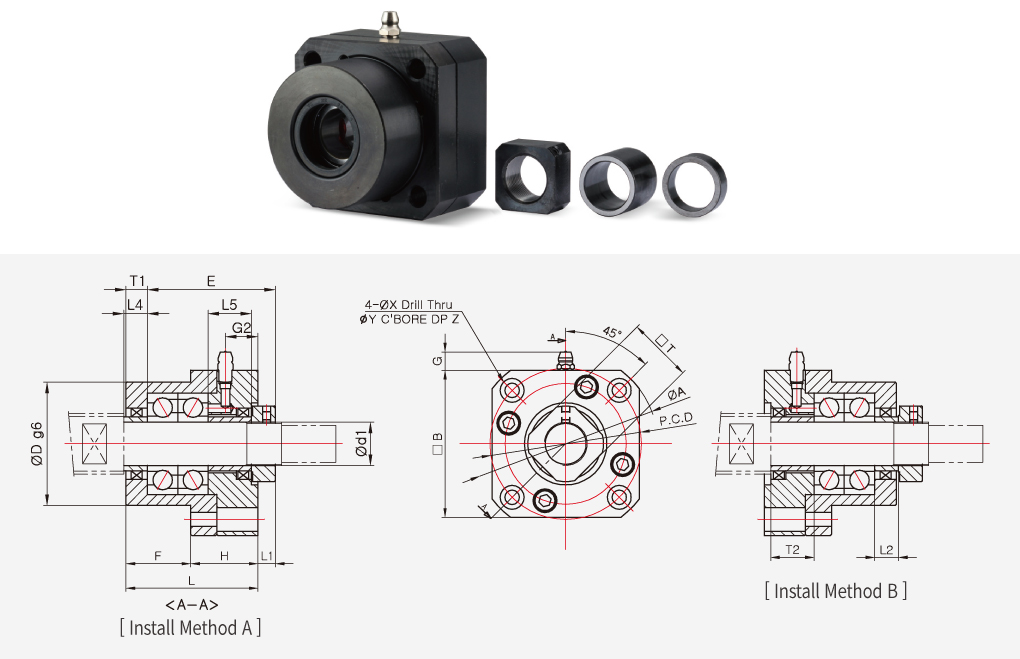

FK-G Series (Fixed Side)
FK-17-G ~ FK-30-G

※ Additional note for [FK-30]
In case of choosing “Install Method B”, size of spacer(collar) needs to be accordingly changed. Please contact Sung-il Customer Service team for more details.

Dimensions
Model CAD Sizes (mm) Mass (g)
Body Spacer(collar)
d1 L H F E D A P.C.D □B Install Method A Install Method B X Y Z □T G G2 L4 L5
L1 T1 L2 T2
FK-17-G 17 55 32 23 56 50 77 62 61 10 9 13 12 6.6 11 20 24 8.5 16 9 19 1100
FK-20-G 20 61 31 30 59 57 85 70 68 8 10 12 14 6.6 11 19 30 8.5 15 11 20 1400
FK-25-G 25 65 35 30 68 63 98 80 79 13 10 20 17 9 15 21 35 8.5 17 15 23 1800
FK-30-G 30 69.5 37.5 32 74.5 75 117 95 93 17 12 17 18 11 17.5 22.5 40 8.5 18.5 9 22.5 2700
FK-35-G ~ FK-40-G
Dimensions
Model CAD Sizes (mm) Mass
(g)
Body Spacer(collar)
d1 L H F E D1 D2 A P.C.D B L1 T1 X Y Z □T G G2 L4 L5
FK-35-G 35 48 16 32 77 112 100 154 132 120 24 12 11 17.5 11 50 3.5 16 12 22 4700
FK-40-G 40 61 18 43 92.5 126 120 176 150 128 25.5 16 14 20 13 50 6.5 17.5 15 31.5 7300
