Timing Pulley
Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.
SATP-1.5GT Series
High Strength Aluminum Alloy Timing Pulley

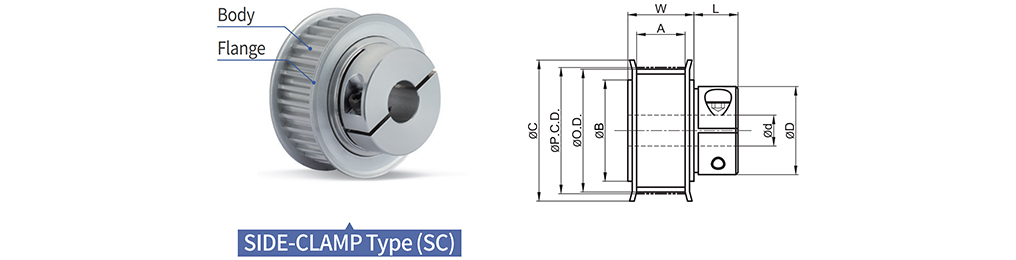

+ Side-clamp (High Strength Aluminum Alloy) Type
Dimensions / Performance
|
TYPE |
CAD |
NT |
P.C.D. |
O.D. |
C |
B |
D |
L |
Fastening Screw |
ID Range |
|
|
Size |
Fastening Torque(N·m) |
BW030 (A:4, W:7.3) |
|||||||||
|
SATP-1.5GT SC |
 |
36 |
17.2 |
16.7 |
22 |
13 |
10 |
6 |
M1.6 |
0.25 |
3 |
|
38 |
18.1 |
17.7 |
22 |
13 |
10 |
6 |
M1.6 |
0.25 |
3 |
|
|
40 |
19.1 |
18.6 |
23 |
14 |
10 |
6 |
M1.6 |
0.25 |
3 |
|
|
42 |
20.1 |
19.6 |
24 |
15 |
12 |
7 |
M2 |
0.5 |
3 ~ 5 |
|
|
44 |
21 |
20.6 |
25 |
17 |
14 |
7 |
M2 |
0.5 |
3 ~ 6 |
|
|
46 |
22 |
21.5 |
25 |
17 |
14 |
7 |
M2 |
0.5 |
3 ~ 6 |
|
|
48 |
22.9 |
22.5 |
26 |
18 |
14 |
7 |
M2 |
0.5 |
3 ~ 6 |
|
• Keyway is available for SC series.
• Surface treatment may not be applied on inner surface of Pulley’s body.

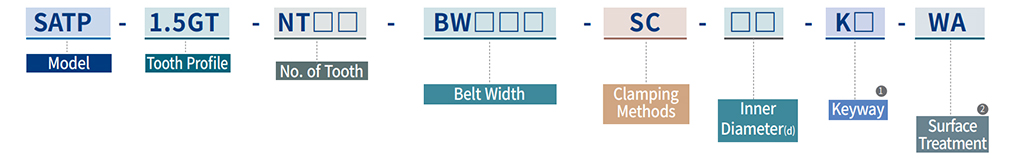

How to Order
① Keyway
- No mark
- No Keyway
- K(b size)
- Keyway processed according to the indicated b size.
② Surface Treatment
- WA
- White Anodizing
