Timing Pulley
Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.
SATP-2GT Series
High Strength Aluminum Alloy Timing Pulley
+ Side-clamp (High Strength Aluminum Alloy) Type
Dimensions / Performance
|
TYPE |
CAD |
NT |
P.C.D. |
O.D. |
C |
B |
D |
L |
Fastening Screw |
ID Range |
||
|
Size |
Fastening Torque(N·m) |
BW040 (A:5, W:8.3) |
BW060 (A:7, W:10.3) |
|||||||||
|
SATP-2GT SC |
 |
27 |
17.2 |
16.7 |
22 |
13 |
10 |
6 |
M1.6 |
0.25 |
3 |
3 |
|
28 |
17.8 |
17.3 |
23 |
14 |
10 |
6 |
M1.6 |
0.25 |
3 |
3 |
|
|
29 |
18.5 |
18 |
23 |
14 |
10 |
6 |
M1.6 |
0.25 |
3 |
3 |
|
|
30 |
19.1 |
18.6 |
24 |
15 |
12 |
7 |
M2 |
0.5 |
3 ~ 5 |
3 ~ 5 |
|
|
32 |
20.4 |
19.9 |
25 |
17 |
12 |
7 |
M2 |
0.5 |
3 ~ 5 |
3 ~ 5 |
|
|
34 |
21.7 |
21.1 |
27 |
18 |
14 |
7 |
M2 |
0.5 |
3 ~ 6 |
3 ~ 6 |
|
|
36 |
22.9 |
22.4 |
27 |
18 |
14 |
7 |
M2 |
0.5 |
3 ~ 6 |
3 ~ 6 |
|
|
38 |
24.2 |
23.7 |
29 |
20 |
18 |
7.5 |
M2 |
0.5 |
3 ~ 8 |
3 ~ 8 |
|
|
40 |
25.5 |
25 |
30 |
21 |
18 |
7.5 |
M2 |
0.5 |
3 ~ 8 |
3 ~ 8 |
|
|
44 |
28 |
27.5 |
32 |
23 |
20 |
7.5 |
M2 |
0.5 |
5 ~ 10 |
5 ~ 10 |
|
|
48 |
30.6 |
30.1 |
35 |
26 |
20 |
7.5 |
M2 |
0.5 |
5 ~ 10 |
5 ~ 10 |
|
|
50 |
31.8 |
31.3 |
36 |
27 |
20 |
7.5 |
M2 |
0.5 |
5 ~ 10 |
5 ~ 10 |
|
|
60 |
38.2 |
37.7 |
42 |
33 |
30 |
11 |
M3 |
1.5 |
8 ~ 14 |
8 ~ 14 |
|
|
72 |
45.8 |
45.3 |
51 |
42 |
38 |
14.3 |
M4 |
2.5 |
8 ~ 20 |
8 ~ 20 |
|
• Keyway is available for SC series.
• Surface treatment may not be applied on inner surface of Pulley’s body..

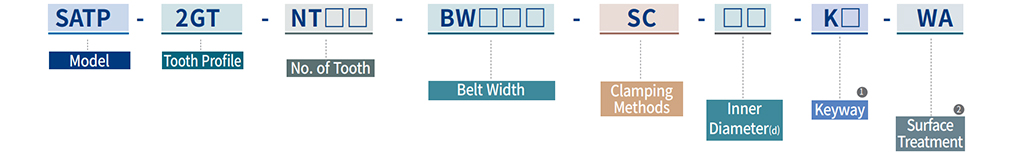

How to Order
① Keyway
- No mark
- No Keyway
- K(b size)
- Keyway processed according to the indicated b size.
② Surface Treatment
- WA
- White Anodizing
