Timing Pulley
Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.
SATP-S3M Series
High Strength Aluminum Alloy Timing Pulley
+ Bearing Mounted Type (Center bearing)
Dimensions / Performance
|
TYPE |
NT |
P.C.D. |
O.D. |
C |
B |
Bearing |
D |
I |
ID (d) |
ID (d) |
||
|
BW100 |
CAD |
BW150 |
CAD |
|||||||||
|
SATP-S3M IDOC IDTC |
30 |
28.65 |
27.89 |
32 |
23 |
626ZZ |
19 |
6 |
6 |
 |
– |
– |
|
34 |
32.47 |
31.71 |
40 |
28 |
608ZZ |
22 |
7 |
8 |
|
– |
– |
|
|
36 |
34.38 |
33.62 |
40 |
28 |
608ZZ |
22 |
7 |
8 |
|
– |
– |
|
|
40 |
38.20 |
37.44 |
44 |
32 |
628ZZ |
24 |
8 |
8 |
|
– |
|
|
|
6000ZZ |
26 |
8 |
10 |
– |
||||||||
|
6900ZZ |
22 |
6 |
– |
10 |
||||||||
|
6901ZZ |
24 |
6 |
– |
12 |
||||||||
|
44 |
42.02 |
41.25 |
48 |
36 |
628ZZ |
24 |
8 |
8 |
|
– |
|
|
|
6000ZZ |
26 |
8 |
10 |
– |
||||||||
|
6900ZZ |
22 |
6 |
– |
10 |
||||||||
|
6001ZZ |
28 |
8 |
12 |
– |
||||||||
|
6901ZZ |
24 |
6 |
– |
12 |
||||||||
|
48 |
45.84 |
45.07 |
50 |
38 |
6000ZZ |
26 |
8 |
10 |
|
– |
|
|
|
6900ZZ |
22 |
6 |
– |
10 |
||||||||
|
50 |
47.75 |
46.98 |
52 |
40 |
6000ZZ |
26 |
8 |
10 |
|
– |
|
|
|
6900ZZ |
22 |
6 |
– |
10 |
||||||||
|
6001ZZ |
28 |
8 |
12 |
– |
||||||||
|
6901ZZ |
24 |
6 |
– |
12 |
||||||||
|
60 |
57.30 |
56.53 |
61 |
46 |
6000ZZ |
26 |
8 |
10 |
|
– |
– |
|

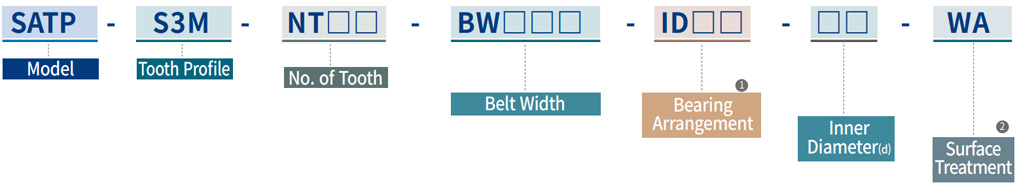

How to Order
① Bearing Arrangement
- IDOC
- 1 pc, center
- IDTC
- 2 pcs, center
② Surface Treatment
- HA
- Hard Anodizing
- WA
- White Anodizing
