Timing Pulley

Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.

SATP-S8M Series

High Strength Aluminum Alloy Timing Pulley + Bearing Mounted Type (Center bearing)

Dimensions / Performance
TIMING PULLEY (Unit:mm)

TYPE

NT

P.C.D.

O.D.

C

B

Bearing

D

I

ID (d)
IDOC(1 pc)

ID (d)
IDTC(2 pcs)

BW150
(A:17, W:22)

CAD

BW250
(A:28, W:33)

BW300
(A:33, W:38)

BW400
(A:44, W:49)

CAD

SATP-S8M

IDOC

IDTC

20

50.93

49.56

58

40

6201ZZ

32

10

12

 cad

12

–

–

 cad

6202ZZ

35

11

15

15

–

–

22

56.02

54.65

61

45

6201ZZ

32

10

12

 cad

12

–

–

 cad

6202ZZ

35

11

15

15

15

–

24

61.12

59.74

67

50

6201ZZ

32

10

12

 cad

12

–

–

 cad

6202ZZ

35

11

15

15

15

15

6004ZZ

42

12

20

–

–

–

6904ZZ

37

9

–

20

20

–

25

63.66

62.29

70

56

6202ZZ

35

11

15

 cad

15

15

–

 cad

6004ZZ

42

12

–

20

20

20

6204ZZ

47

14

20

–

–

–

26

66.21

64.84

74

58

6202ZZ

35

11

15

 cad

15

15

–

 cad

28

71.30

69.93

80

60

6202ZZ

35

11

15

 cad

15

15

–

 cad

30

76.39

75.02

87

67

6202ZZ

35

11

15

 cad

15

15

–

 cad

6004ZZ

42

12

–

20

–

–

6204ZZ

47

14

20

–

20

20

6005ZZ

47

12

25

25

25

–

6205ZZ

52

15

–

–

–

25

32

81.49

80.12

87

67

6204ZZ

47

14

20

 cad

–

–

–

–

6005ZZ

47

12

25

–

–

–

–

34

86.58

85.21

95

75

6204ZZ

47

14

20

 cad

–

–

–

–

36

91.67

90.30

99

80

6005ZZ

47

12

25

 cad

–

–

–

–

40

101.86

100.49

111

90

6205ZZ

52

15

25

 cad

–

–

–

–

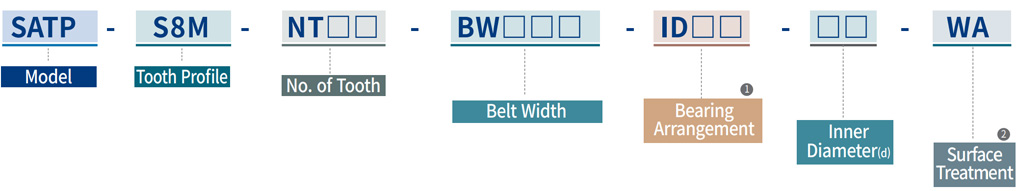

How to Order
① Bearing Arrangement
IDOC
1 pc, center
IDTC
2 pcs, center
② Surface Treatment
HA
Hard Anodizing
WA
White Anodizing
