Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SHD Series Go to SHD Series(Index)

Single Disk High Torque Disk Coupling

  • SHD – 2D (.dwg)
  • SHD – 3D (.step)

Set-Screw

Size (OD) 55 66 88 110

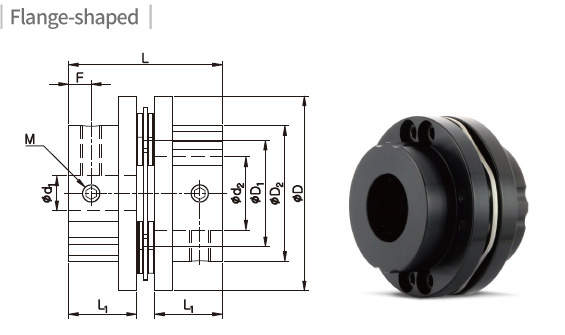

Flange-shaped ＜ ID 22mm ＜ ID 26mm ＜ ID 32mm ＜ ID 48mm

• Only flange-shaped products are available for OD126 and OD144

Size (OD) 55 66 88 110

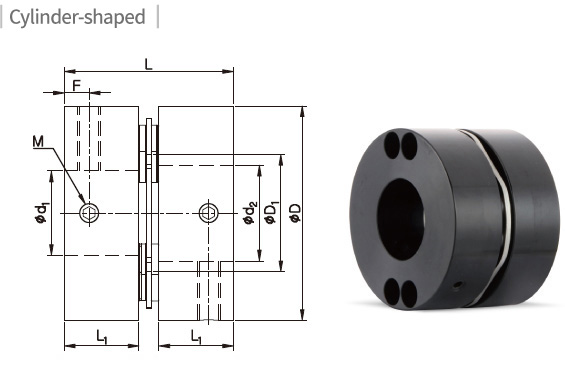

Cylinder-shaped ≥ ID 22mm ≥ ID 26mm ≥ ID 32mm ≥ ID 48mm
Dimensions / Performance
Model CAD Size (±0.3mm) Screw Permissible
Torque
(N·m) 		Max.
rpm
(min-1)		 Moment
of
Inertia
(kg·m2) 		Static
Torsional
Stiffness
(N·m/rad) 		Mass
(g)		 Permissible Misalignment
D D1 D2 L L1 F Size Fastening
Torque
(N·m)		 Angular
(˚)		 Parallel
(mm)		 End-
play
(mm)
SHDS-56 56 30.6 39 44.2 19.5 6.5 M6 7 35 7,700 2.9×10-5 2.0×104 150 0.7 0.02 ±0.3
SHDS-66 66 35.6 46 56.5 24.5 7.5 M8 15 60 7,000 8.0×10-5 3.0×104 300 0.7 0.02 ±0.3
SHDS-88 88 46 63 69.9 30 9.5 M8 15 180 5,500 2.9×10-4 7.0×104 600 0.7 0.02 ±0.3
SHDS-110 108 60.5 77 77.7 34.5 13 M10 30 280 4,000 2.0×10-3 1.4×105 1,190 0.7 0.02 ±0.5
SHDS-126 126 65 78/*92 91.2 40 12 M10 30 450 3,500 4.4×10-3 4.4×105 3,200 1 0.02 ±1.6
SHDS-144 144 75 88/*104 101.7 45 15 M10 30 600 3,000 8.4×10-3 7.8×105 4,700 1 0.02 ±1.8
  • The Moment of Inertia and Mass values are based on products with max. Inner diameter.
  • Permissible Torque is the value regarding to a coupling’s self-durability and is not related to slip-torque between the coupling bore and the shaft. (Set-screw type is usually less durable than other clamping method, thus please consider it has a complementary option e.g. keyway along with.)
  • OD 126 & 144: Please refer to * marked values for D2 when ID is over 55mm (OD126) and 66mm(OD144)
Standard Inner Diameter (ID)
Model Standard Inner Diameter (d1, d2) (mm)
10 11 12 14 15 16 18 19 20 22 24 25 26 28 30 32 35 38 40 42 45 48 50 55 60 65 70
SHDS-56 ● ● ● ● ● ● ● ● ● ● ● ●
SHDS-66 ● ● ● ● ● ● ● ● ● ● ● ●
SHDS-88 ● ● ● ● ● ● ● ● ● ● ● ● ●
SHDS-110 ● ● ● ● ● ● ● ● ● ● ●★
SHDS-126 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
SHDS-144 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
  • The recommended shaft tolerance is h7.
  • Custom process (e.g. non-standard Inner diameter, special tolerance etc.) is also available upon a special request in prior to order placement.
  • Keyway is available. (Optional)
  • Due to interference of the middle parts, make sure the shaft is only inserted into L1 depth for IDs with ★ mark. Consult us first if you’re concerned about misalignment.
