Shaft Coupling

Coupling is a core component that transmits power and motion
from the driving shaft to the driven part while absorbing misalignment
and any possible factors that could reduce efficiency of machines
(e.g. vibration, noise, electric current, etc.)

SOH Series Go to SOH Series(Index)

Oldham Coupling_PEEK Spacer / For Vacuum application

  • SOH – 2D (.dwg)
  • SOH – 3D (.step)

Side-clamp

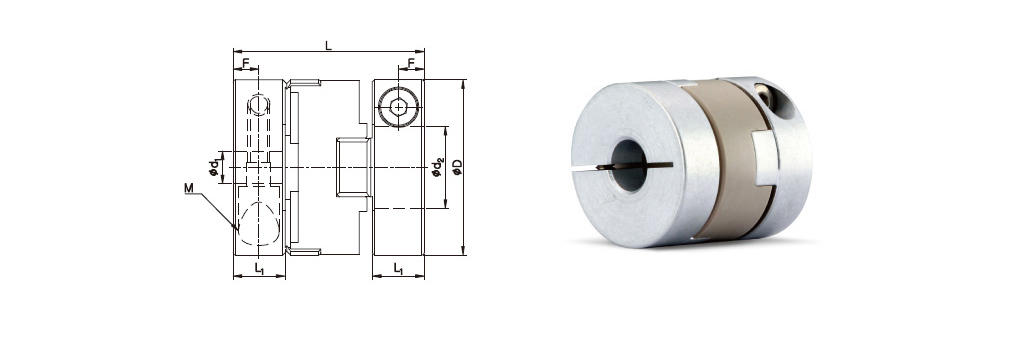

Dimensions / Performance
Model CAD Size (±0.3mm) Screw Rated
Torque
(N·m) 		Max.
Torque
(N·m)		 Max.
rpm
(min-1)		 Moment
of
Inertia
(kg·m2) 		Static
Torsional
Stiffness
(N·m/rad) 		Mass
(g)		 Permissible Misalignment
D L L1 F Size Fastening
Torque
(N·m)		 Angular
(˚)		 Parallel
(mm)		 End-
play
(mm)
SOHMP-20C 20 21.9 6.1 2.9 M2.6 1 1 2 11,000 6.8×10-7 80 12 1.5 1.5 0.1
SOHMP-25C 25.5 26.4 7.4 3.7 M3 1.7 1.5 3 10,000 2.2×10-6 120 23 1.5 2 0.1
SOHMP-32C 32 34.9 9.5 4.7 M4 3.5 3 6 9,000 6.8×10-6 300 44 1.5 2.5 0.2
SOHMP-43C 43 47 14 7 M5 8 5 10 8,000 3.0×10-5 1,000 114 1.5 3 0.15
  • The Moment of Inertia and Mass values are based on products with max. Inner diameter.
  • Max. torque/rated torque is the value regarding to a coupling’s self-durability and is not related to slip-torque between the coupling bore and the shaft.
Standard Inner Diameter (ID)
Model Standard Inner Diameter (d1, d2) (mm)
4 5 6 6.35 8 9 9.525 10 11 12 14 15 16 18 19
SOHMP-20C ● ● ● ● ●
SOHMP-25C ● ● ● ● ● ● ●
SOHMP-32C ● ● ● ● ● ● ● ● ● ●
SOHMP-43C ● ● ● ● ● ● ● ● ● ● ●
  • The recommended shaft tolerance is h7.
  • Custom process (e.g. non-standard Inner diameter, special tolerance etc.) is also available upon a special request in prior to order placement.
  • Keyway is available. (Optional)
