Support Unit For Ball screw
Support unit for ball screw helps to support each shaft-ends of
ball screw. We, S.I.M provides diverse options according to sizes,
loads and purposes for our customers’ best convenience.
Support Unit for Ball Screw (Index)
Motor Bracket Unit
Product Overview

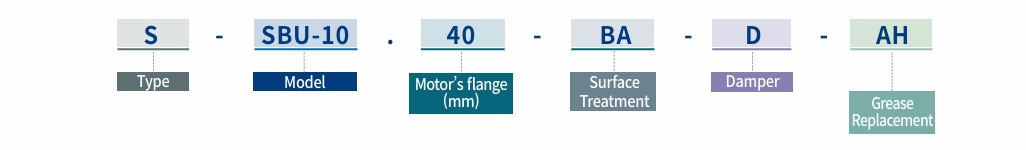

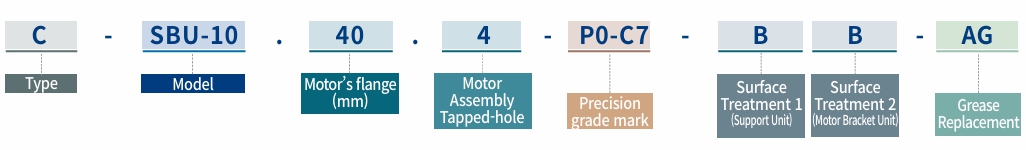

Fixed Side
| Initial | Type |
|---|---|
| C | Clean (Closed) |
| O | Open |
| E | Economy |
| Precision Grade |
Mark (Fixed Side Only) |
Bearing Precision Grade |
Preload |
|---|---|---|---|
| P5 | P5 | Medium | |
| C8 | General | Medium | |
| P0-C7 | General | Light |
| Surface Treatment |
Mark | Surface Treatment 1 (Support Unit) |
Mark | Surface Treatment 2 (Motor Bracket Unit) |
|---|---|---|---|---|
| B | BK, Black Oxide | B | BA, Black Anodizing | |
| N | NI, Electroless Nickel Plating | W | WA, White Anodizing | |
| R | RA, Low temperature Black Chrome Plating (Raydent) | N | NI, Electroless Nickel Plating |
| Grease Model | Standard | LG2 | AFE-CA | AFF | HT-Z1 | NBU-15 | XL-600 |
|---|---|---|---|---|---|---|---|
| Mark | No mark | AG | AE | AF | AH | AN | AX |
Supported Side
| Damper (Optional) |
Mark | Damper-attached |
|---|---|---|
| No mark | Not attached | |
| D | Attached |
| Surface Treatment |
Mark | Surface Treatment |
|---|---|---|
| BA | Black Anodizing | |
| WA | White Anodizing | |
| NI | Electroless Nickel Plating |
| Grease Model | Standard | LG2 | AFE-CA | AFF | HT-Z1 | NBU-15 | XL-600 |
|---|---|---|---|---|---|---|---|
| Mark | No mark | AG | AE | AF | AH | AN | AX |
※ For detailed information regarding grease replacement, please refer to the guideline pages in the catalogue under the “Made-To-Order Process.”
