Timing Pulley

Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.

SATP-8YU Series

High Strength Aluminum Alloy Timing Pulley + Bearing Mounted Type (Both sides bearing)

Product Overview
Dimensions / Performance / CAD

SPAS SPB SC ID□C IDTS

Dimensions / Performance

TIMING PULLEY (Unit:mm)

TYPE	NT	P.C.D.	O.D.	C	B	Bearing	D	Dh	I	ID (d) IDTS(2 pcs)
TYPE	NT	P.C.D.	O.D.	C	B	Bearing	D	Dh	I	BW150 (A:16.3, W:20)	BW250 (A:26.7, W:33)	CAD
SATP-8YU IDTS	22	56.02	54.65	61	45	6001ZZ	28	25	8	12	–
						6002ZZ	32	29	9	15	–
						6202ZZ	35	30	11	–	15
	24	61.12	59.74	67	50	6201ZZ	32	27	10	–	12
	24	61.12	59.74	67	50	6904ZZ	37	32	9	20	20
	25	63.66	62.29	70	56	6201ZZ	32	27	10	–	12
						6204ZZ	47	41	14	–	20
						6904ZZ	37	32	9	20	–
	26	66.21	64.84	74	58	6001ZZ	28	25	8	12	12
	28	71.30	69.93	80	60	6202ZZ	35	30	11	–	15
	30	76.39	75.02	87	67	6002ZZ	32	29	9	15	15
						6004ZZ	42	37	12	–	20
						6005ZZ	47	43	12	–	25
	32	81.49	80.12	87	67	6204ZZ	47	41	14	–	20
	32	81.49	80.12	87	67	6005ZZ	47	43	12	–	25
	34	86.58	85.21	95	75	6204ZZ	47	41	14	–	20
	36	91.67	90.30	99	80	6005ZZ	47	43	12	–	25
	40	101.86	100.49	111	90	6005ZZ	47	43	12	–	25

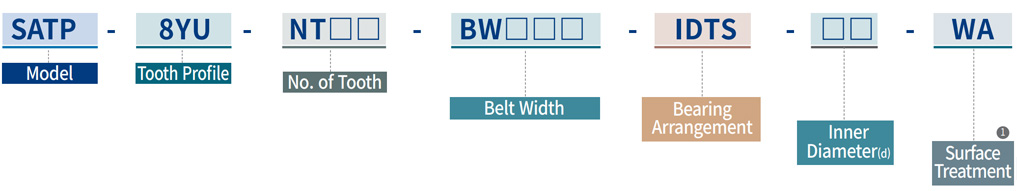

How to Order

① Surface Treatment

HA: Hard Anodizing

WA: White Anodizing
