Timing Pulley

Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.

SATP-S3M Series

High Strength Aluminum Alloy Timing Pulley + Bearing Mounted Type (Both sides bearing)

Product Overview
Dimensions / Performance / CAD

SPAA SPAS SPB SC ID□C IDTS

Dimensions / Performance

TIMING PULLEY (Unit:mm)

TYPE	NT	P.C.D.	O.D.	C	B	Bearing	D	Dh	I	ID (d) IDTS(2 pcs)
TYPE	NT	P.C.D.	O.D.	C	B	Bearing	D	Dh	I	BW100 (A:11, W:16)	BW150 (A:17, W:22)	CAD
SATP-S3M IDTS	30	28.65	27.89	32	23	696ZZ	15	13	5	6	6
	30	28.65	27.89	32	23	688ZZ	16	14	5	8	–
	34	32.47	31.71	40	28	606ZZ	17	14.5	6	6	–
						608ZZ	22	19.5	7	–	8
						698ZZ	19	16.5	6	8	–
	36	34.38	33.62	40	28	606ZZ	17	14.5	6	6	–
	36	34.38	33.62	40	28	6900ZZ	22	19.5	6	10	10
	40	38.20	37.44	44	32	608ZZ	22	19.5	7	–	8
						698ZZ	19	16.5	6	8	–
						6900ZZ	22	19.5	6	10	10
						6001ZZ	28	25	8	–	12
						6901ZZ	24	22	6	12	–
	44	42.02	41.25	48	36	608ZZ	22	19.5	7	–	8
						6900ZZ	22	19.5	6	10	10
						6001ZZ	28	25	8	–	12
						6901ZZ	24	22	6	12	–
	48	45.84	45.07	50	38	6900ZZ	22	19.5	6	10	10
	50	47.75	46.98	52	40	6900ZZ	22	19.5	6	10	10
						6001ZZ	28	25	8	–	12
						6901ZZ	24	22	6	12	–
	60	57.30	56.53	61	46	6900ZZ	22	19.5	6	10	–
	60	57.30	56.53	61	46	6001ZZ	28	25	8	–	12

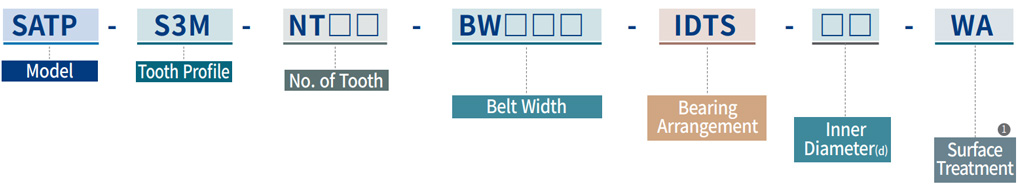

How to Order

① Surface Treatment

HA: Hard Anodizing

WA: White Anodizing
