Timing Pulley

Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.

SATP-S5M Series

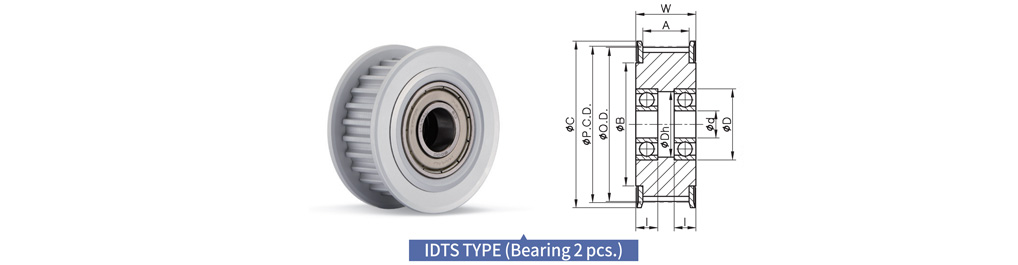

High Strength Aluminum Alloy Timing Pulley + Bearing Mounted Type (Both sides bearing)

Dimensions / Performance
TIMING PULLEY (Unit:mm)

TYPE

NT

P.C.D.

O.D.

C

B

Bearing

D

Dh

I

ID (d)
IDTS(2 pcs)

BW100
(A:11, W:16)

BW150
(A:17, W:22)

BW250
(A:27, W:32)

CAD

SATP-S5M

IDTS

20

31.83

30.87

36

24

698ZZ

19

16.5

6

8

8

8

 cad

22

35.01

34.05

40

27

608ZZ

22

19.5

7

–

8

8

 cad

698ZZ

19

16.5

6

8

–

–

6900ZZ

22

19.5

6

10

–

–

24

38.20

37.24

45

30

608ZZ

22

19.5

7

–

8

8

 cad

6900ZZ

22

19.5

6

10

–

–

6901ZZ

24

22

6

12

12

–

25

39.79

38.83

45

30

606ZZ

17

14.5

6

–

–

6

 cad

696ZZ

15

13

5

6

6

–

608ZZ

22

19.5

7

–

–

8

698ZZ

19

16.5

6

8

8

–

6900ZZ

22

19.5

6

10

–

–

6901ZZ

24

22

6

12

12

–

26

41.38

40.42

48

35

6200ZZ

30

25

9

–

10

10

 cad

6900ZZ

22

19.5

6

10

–

–

6001ZZ

28

25

8

–

12

–

6901ZZ

24

22

6

12

–

–

6902ZZ

28

26

7

–

–

15

28

44.56

43.60

48

35

6200ZZ

30

25

9

–

–

10

 cad

6900ZZ

22

19.5

6

10

10

–

6001ZZ

28

25

8

–

12

–

6901ZZ

24

22

6

12

–

–

6902ZZ

28

26

7

–

15

–

30

47.75

46.79

52

36

6200ZZ

30

25

9

–

10

–

 cad

6900ZZ

22

19.5

6

10

–

–

6001ZZ

28

25

8

–

12

–

6201ZZ

32

27

10

–

–

12

6901ZZ

24

22

6

12

–

–

6902ZZ

28

26

7

–

15

–

32

50.93

49.97

55

40

6200ZZ

30

25

9

–

10

–

 cad

6001ZZ

28

25

8

–

12

–

6201ZZ

32

27

10

–

–

12

6902ZZ

28

26

7

–

15

–

6804ZZ

32

29

7

–

20

20

36

57.30

56.34

61

45

6200ZZ

30

25

9

–

10

–

 cad

6002ZZ

32

29

9

–

15

–

6202ZZ

35

30

11

–

–

15

6904ZZ

37

34

9

–

20

20

40

63.66

62.70

67

50

6200ZZ

30

25

9

–

10

–

 cad

6002ZZ

32

29

9

–

15

–

6202ZZ

35

30

11

–

–

15

6904ZZ

37

34

9

–

20

20

44

70.03

69.07

74

58

6904ZZ

37

34

9

–

20

20

 cad

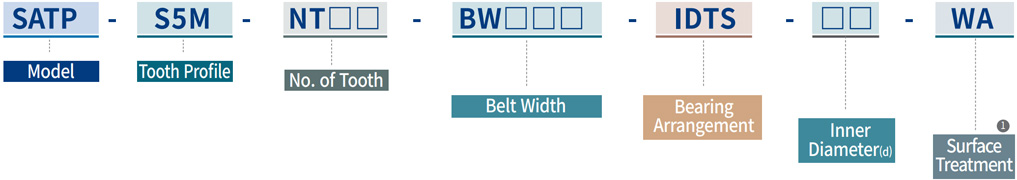

How to Order
① Surface Treatment
HA
Hard Anodizing
WA
White Anodizing
