Timing Pulley
Timing pulley is a part that transmits the rotational power
received from the timing belt to the shaft. Our products provide
sufficient tightening force without additional processing on shafts / pulleys, etc.
and support a variety of shaft fastening methods that are easy to install.
SATP-S5M Series
High Strength Aluminum Alloy Timing Pulley
+ Side-clamp (High Strength Aluminum Alloy) Type

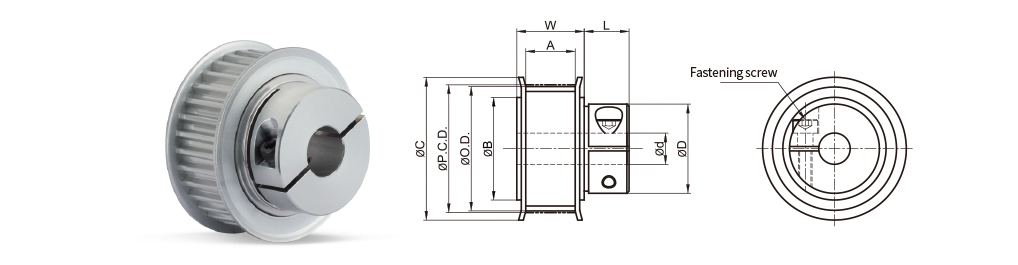

Dimensions / Performance
|
TYPE |
CAD |
NT |
P.C.D. |
O.D. |
C |
B |
D |
L |
Fastening Screw |
ID Range |
||
|
Size |
Fastening Torque(N·m) |
BW100 (A:11, W:16) |
BW150 (A:17, W:22) |
|||||||||
|
SATP-S5M SC |
|
24 |
38.20 |
37.24 |
45 |
30 |
26 |
12.5 |
M3X10 |
1.5 |
8, 10 |
8, 10 |
|
|
25 |
39.79 |
38.83 |
45 |
30 |
26 |
12.5 |
M3X10 |
1.5 |
8, 10 |
8, 10 |
|
|
|
26 |
41.38 |
40.42 |
48 |
35 |
31 |
14 |
M4X14 |
3.5 |
8, 10 |
8, 10 |
|
|
|
28 |
44.56 |
43.60 |
48 |
35 |
31 |
14 |
M4X14 |
3.5 |
8, 10 |
8, 10 |
|
|
|
30 |
47.75 |
46.79 |
52 |
36 |
31 |
14 |
M4X14 |
3.5 |
10 |
10 |
|
|
|
32 |
50.93 |
49.97 |
55 |
40 |
36 |
14 |
M4X14 |
3.5 |
10 ~ 14 |
10 ~ 14 |
|
|
|
34 |
54.11 |
53.15 |
61 |
45 |
41 |
15.5 |
M5X16 |
6 |
10 ~ 16 |
10 ~ 16 |
|
|
|
36 |
57.30 |
56.34 |
61 |
45 |
41 |
15.5 |
M5X16 |
6 |
10 ~ 16 |
10 ~ 16 |
|
|
|
40 |
63.66 |
62.70 |
67 |
50 |
46 |
15.5 |
M5X16 |
6 |
10 ~ 19 |
10 ~ 19 |
|
|
|
44 |
70.03 |
69.07 |
74 |
58 |
46 |
15.5 |
M5X16 |
6 |
12 ~ 19 |
12 ~ 19 |
|
|
55 |
16.5 |
M6X20 |
12 |
20 ~ 24 |
20 ~ 24 |
|||||||
|
|
48 |
76.39 |
75.43 |
83 |
63 |
46 |
15.5 |
M5X16 |
6 |
12 ~ 19 |
12 ~ 19 |
|
|
55 |
16.5 |
M6X20 |
12 |
20 ~ 25 |
20 ~ 25 |
|||||||
|
|
50 |
79.58 |
78.62 |
87 |
67 |
46 |
15.5 |
M5X16 |
6 |
12 ~ 19 |
12 ~ 19 |
|
|
55 |
16.5 |
M6X20 |
12 |
20 ~ 25 |
20 ~ 25 |
|||||||
|
|
60 |
95.49 |
94.53 |
99 |
80 |
46 |
15.5 |
M5X16 |
6 |
12 ~ 19 |
12 ~ 19 |
|
|
55 |
16.5 |
M6X20 |
12 |
20 ~ 25 |
20 ~ 25 |
|||||||
• Keyway is available for SC series.
• Surface treatment may not be applied on inner surface of Pulley’s body.
Slip Torque (N·m) by Inner diameters
|
ID Range (d) |
8 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
|
Slip Torque (N·m) |
2.6 |
2.6 |
2.6 |
2.6 |
2.6 |
7.6 |
7.6 |
7.6 |
7.6 |
7.6 |
7.6 |
48 |
48 |
66 |
66 |
95 |
95 |

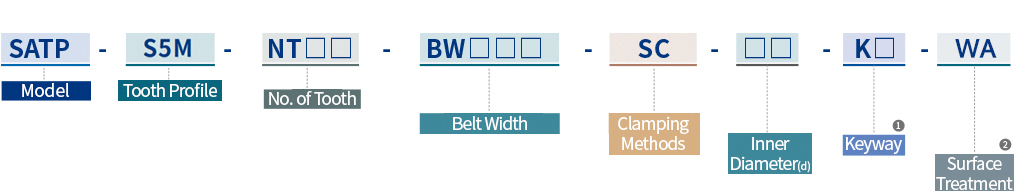

How to Order
① Keyway
- No Mark
- No Keyway
- K(b size)
- Keyway processed according to the indicated b size.
② Surface Treatment
- WA
- White Anodizing
